Trailer Air Spring Replaces S-25873, S-27341, W01-358-8774

Description : Air Spring for Hendrickson Intraax AAT 30K Models

Part Number : TR8774

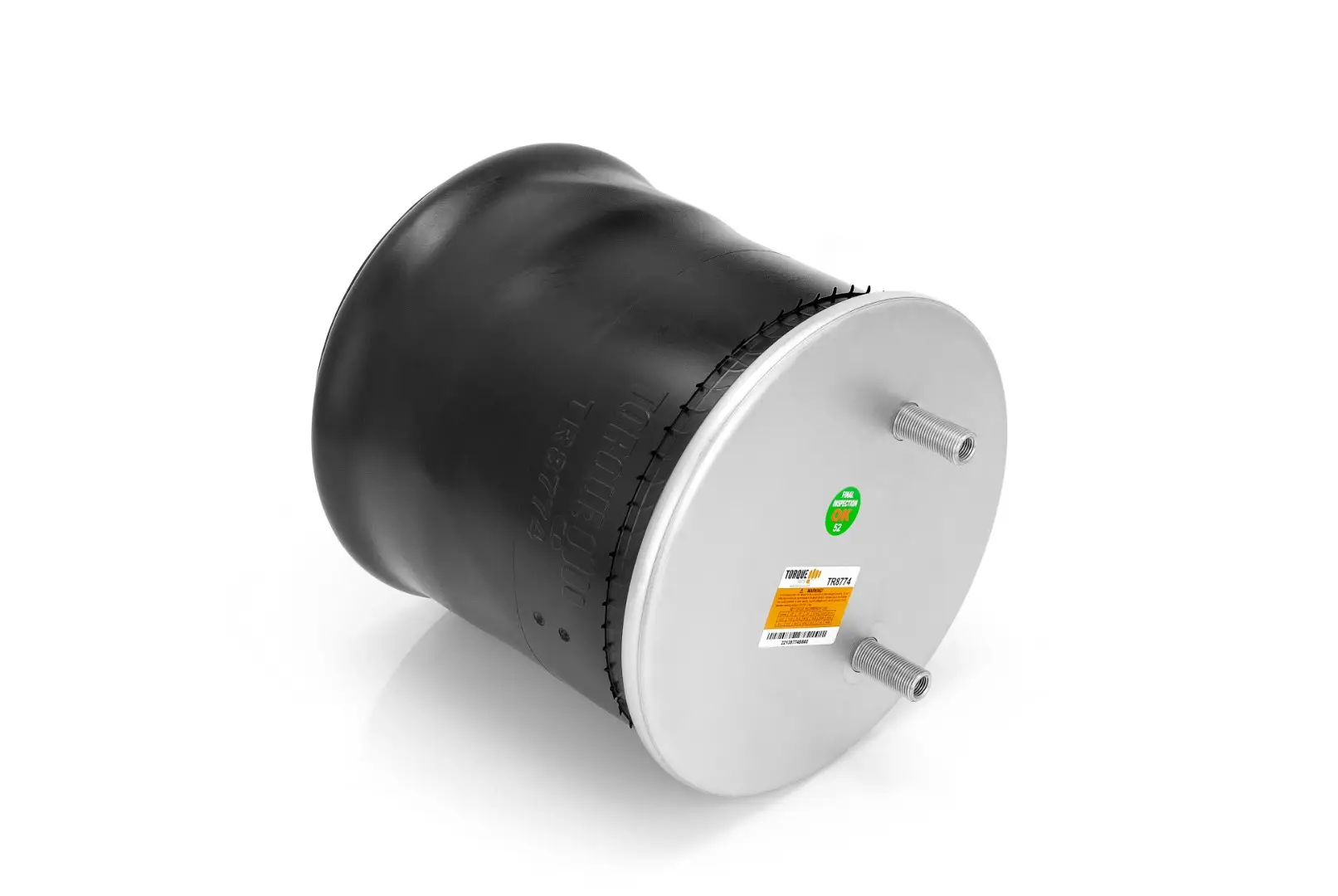

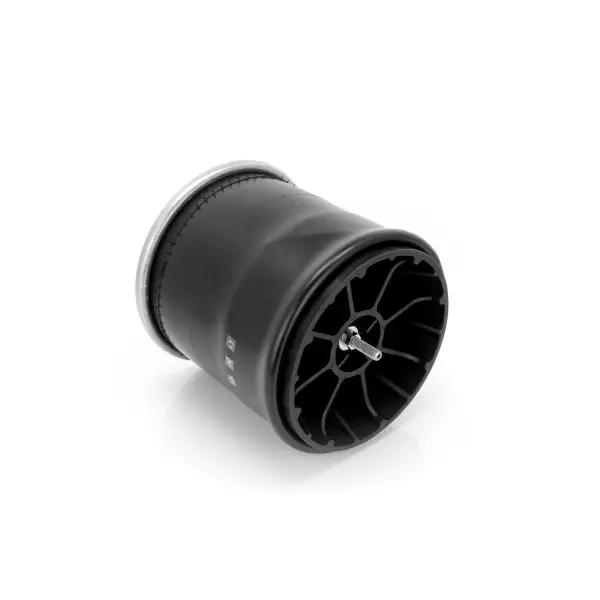

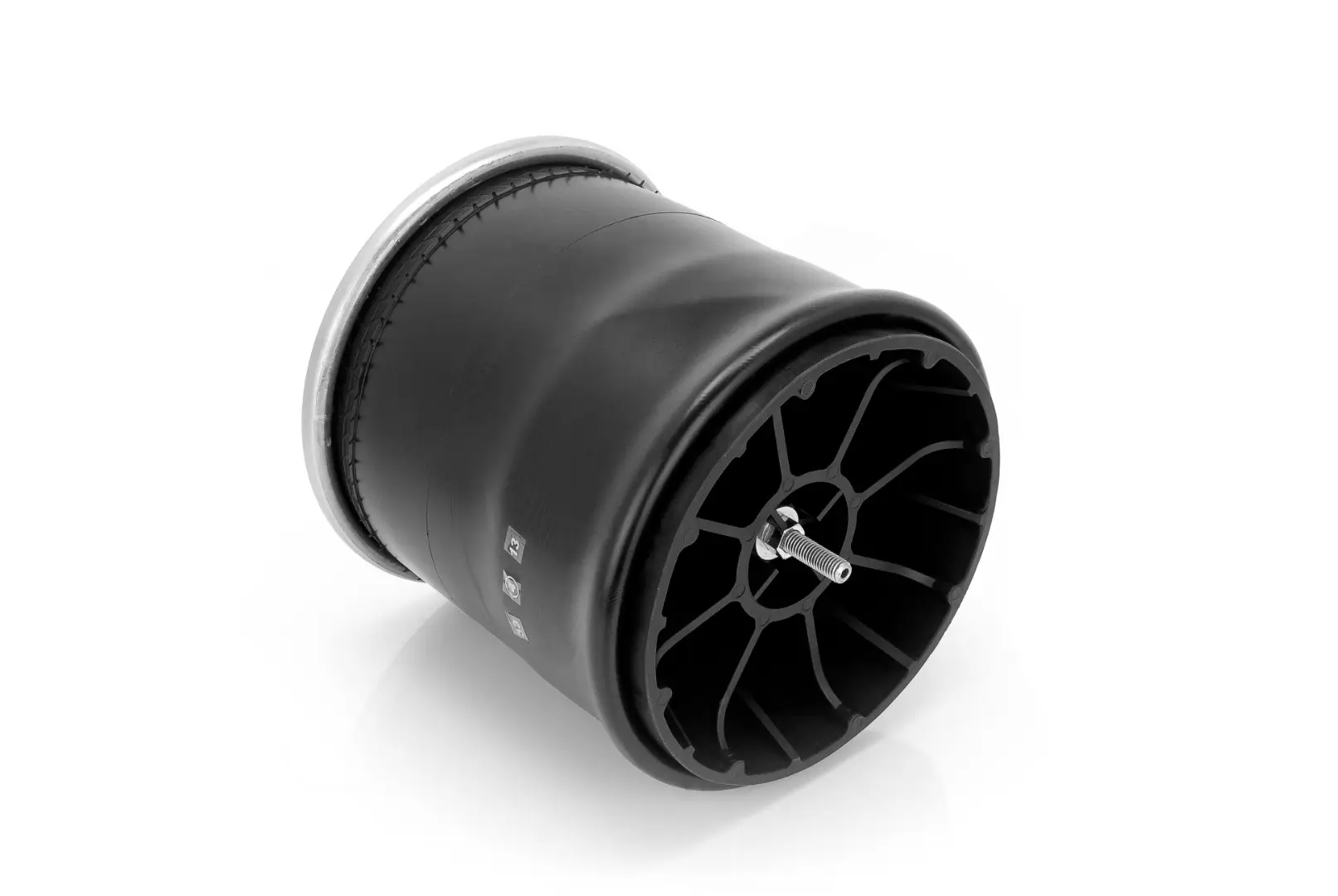

Trailer Air Spring Replaces S-25873, S-27341, W01-358-8774
Trailer Air Spring Replaces S-25873, S-27341, W01-358-8774
Trailer Air Spring Replaces S-25873, S-27341, W01-358-8774
Trailer Air Spring Replaces S-25873, S-27341, W01-358-8774
Click to see price

Trailer Air Spring for Hendrickson AAT 30K Models

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 566.ER8774
Contitech 11 10.5F‑17 P 745, 65593
Firestone 8774, W013588774, W01‑358‑8774
Goodyear 1R14172, 1R14‑172, 1R14190, 1R14‑190
Hendrickson S25873, S‑25873, S27341, S‑27341, S‑25873 for Intraax AAT 30K Models
Watson&Chalin AS0159, AS‑0159, AS‑0159‑1G, AS0159G, AS‑0159G
Triangle AS‑8745
Sampa SP558774‑KP, SP 558774‑KP, SP558774KP, SP558774‑KP10, SP 558774‑KP10

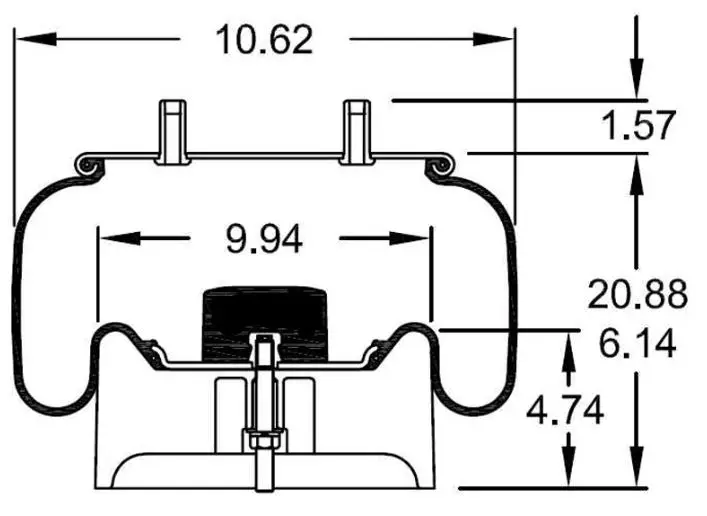

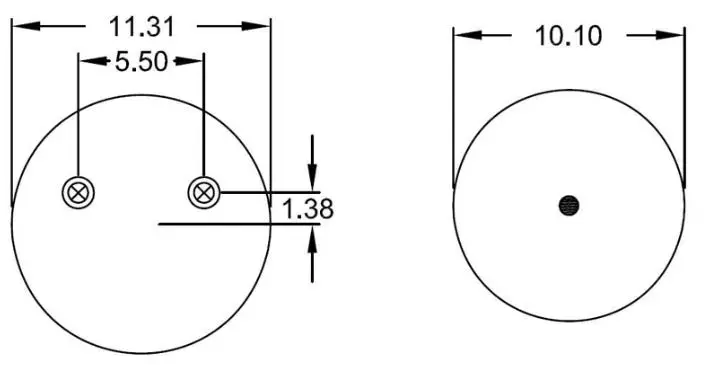

Property Value
Extended Height  20.88"
Compressed Height  6.14"
Top Plate Width  11.31"
Piston Width  10.10"
Weight  18.2 lbs
