Shock Absorbers Heavy Duty Shock Absorbers

Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT

Description : Heavy Duty Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT Trucks

Part Number : TR85066

Click to see price

Heavy Duty Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT Trucks

Where Used:

Make	Series	Additional Information
MACK	CHN - Series	CHN-613 Models w/ MACK Air Suspension
MACK	CX Series - Vision	CX Vison Models w/ MACK Air Suspension
MACK	CXN Series	CXN-613 Models w/ MACK Air Suspension
POWERHOUSE COACH INC.		Models with Volvo VNL780 Chassis with 40,000 lb Rear Air Suspension
RENEGADE RV		Models with Volvo VNL630 Chassis with 40,000 lb Rear Air Suspension
VOLVO	VN Series - 2200	Models built after May 1999
VOLVO	VNL Series	430 Models with 40,000 lb Rear Air Suspension
VOLVO	VNL Series	Models with 38,000 lb Rear Air Suspension built after May 1999
VOLVO	VNL Series	300, 300U Models with 40,000 lb Rear Air Suspension
VOLVO	VNL Series	630 & 670 Models with 40,000 lb Rear Air Suspension
VOLVO	VNL Series	730 & 780 Models with 40,000 lb Rear Air Suspension
VOLVO	VT Series	64T-830 Models with 40,000 lb Rear Air Suspension

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Gabriel	85066
Mack	14QK2136M, 14QK3101M, 20897198, 471700000431, 14QK‑3101M, SDA471700000431
Meritor	85066
Monroe	65486, 66431, 66486
Volvo	20433425, 471700000443, 8086651, 20551628
Volvo/White	20433425, 20551628, 8086651
Sampa:	502.756
Automann:	565.ER3021

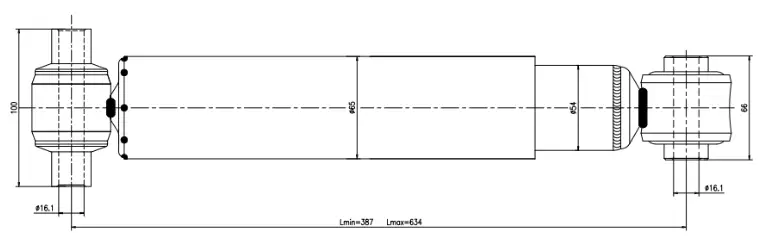

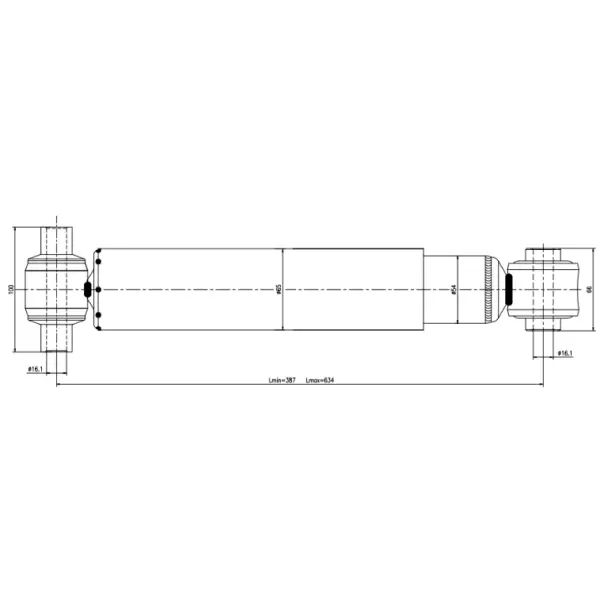

Property	Value
Extended length	24.64"
Collapsed length	15.25"
Stroke	9.39"
Dust tube	Yes
Recoil Cutoff	Yes
Rebound force	812
Compression force	322
Upper Mounting	I.D. 0.63", sleeve length 3.95"
Lower Mounting	I.D. 0.63", sleeve length 2.60"
Bore	1‑5/8"
Weight	8.5lbs
