Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033

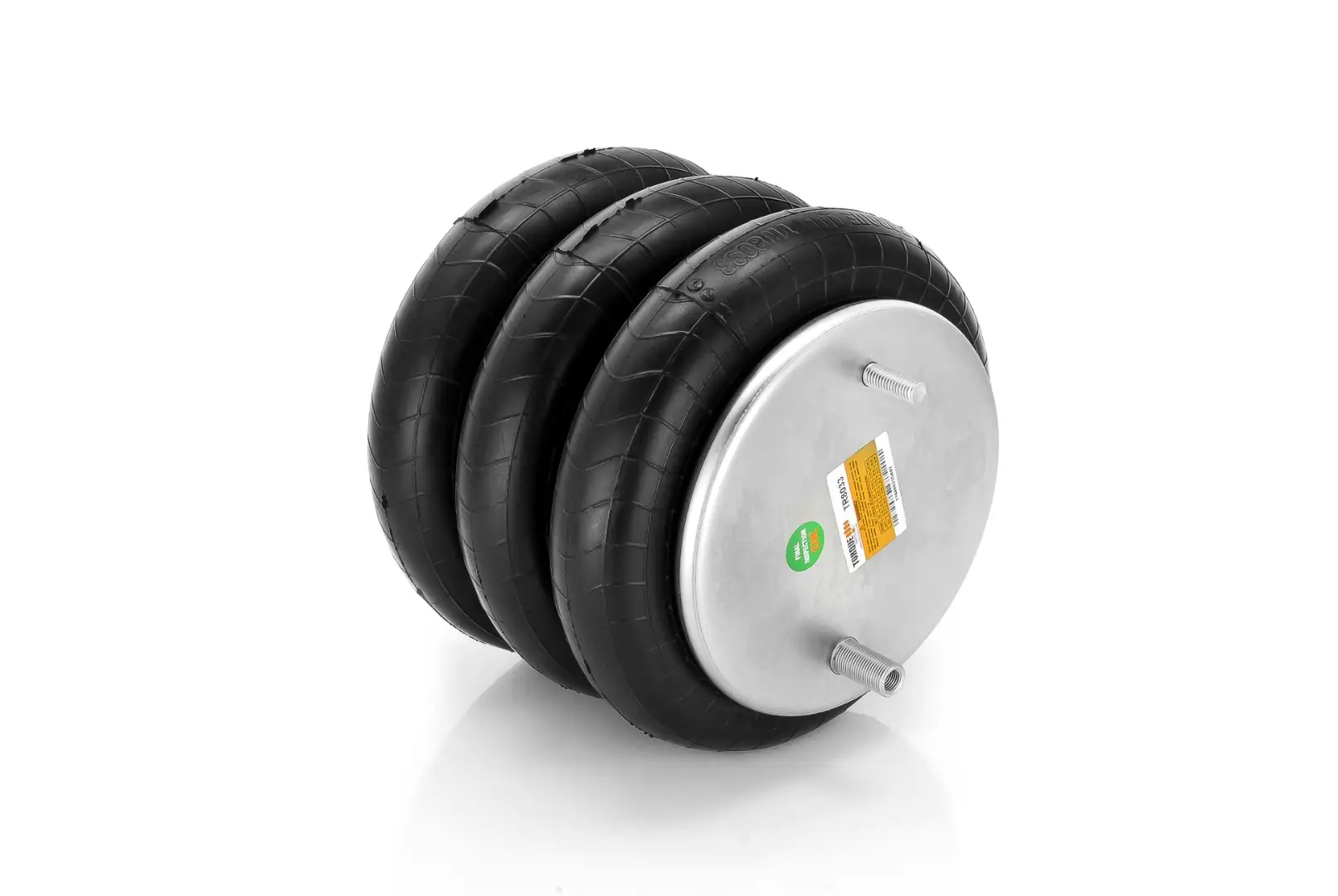

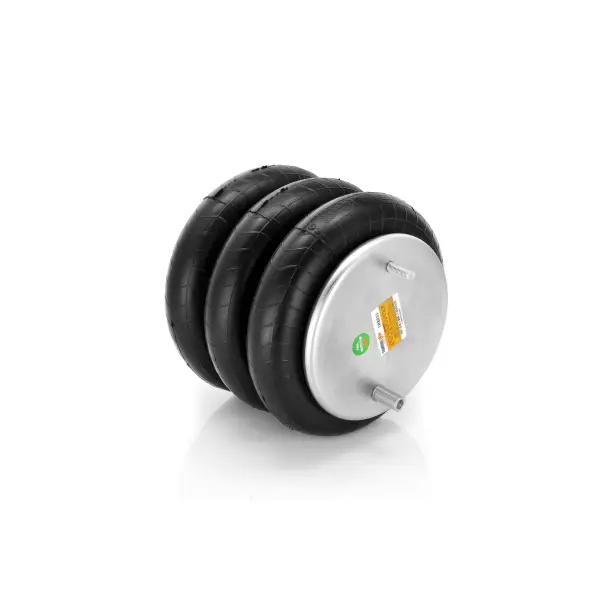

Description : Convoluted Air Spring

Part Number : TR8033

Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033
Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033
Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033
Convoluted Air Spring Replaces S-14487, 3B12-312, W01-358-8033
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 566.ER8033
Contitech 64571, FT 330‑29 525
Firestone 8033, W01‑358‑8033
Goodyear 3B12312, 3B12‑312
Hendrickson 3316, S‑14487
Hendrickson/Turner 3316, B14487, S14487
Mack 8446B14487
Triangle 4525, AS‑4525
Sampa SP558033, SP 558033
Property Value
Compressed Height  4.55"

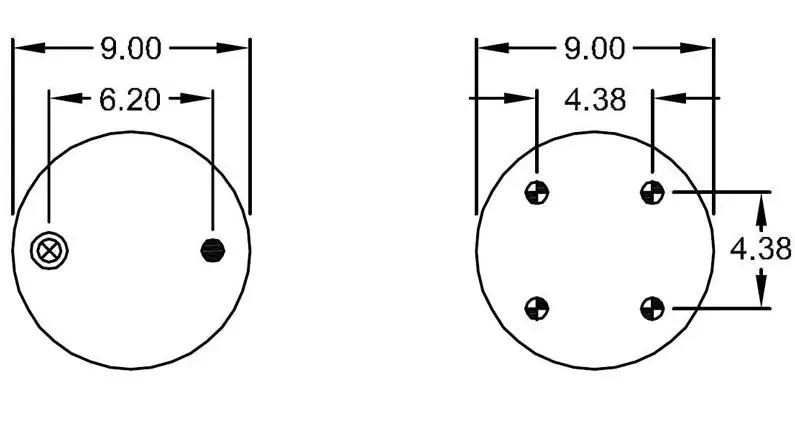

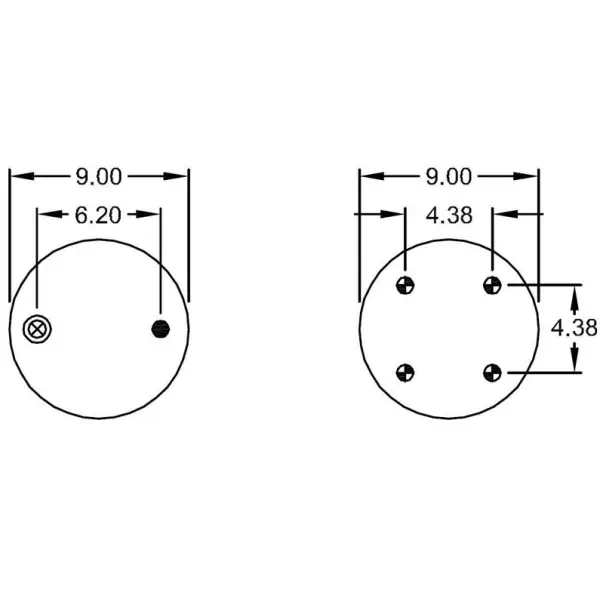

Top Plate Width  9.00"
Piston Width  9.00"
Weight  15.8 lbs
