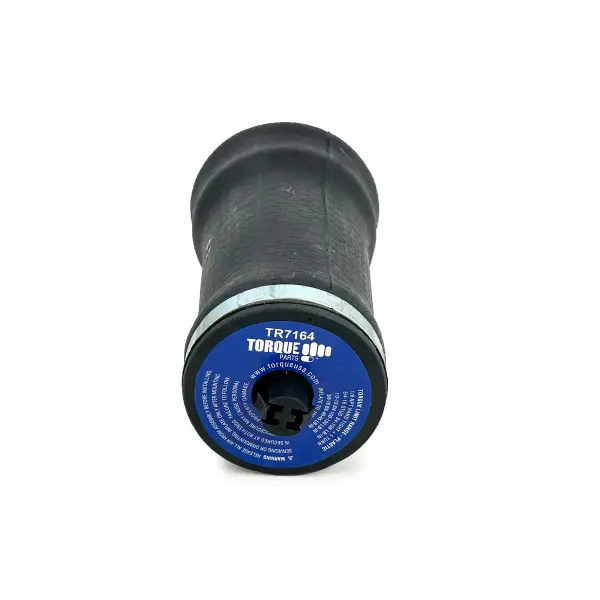

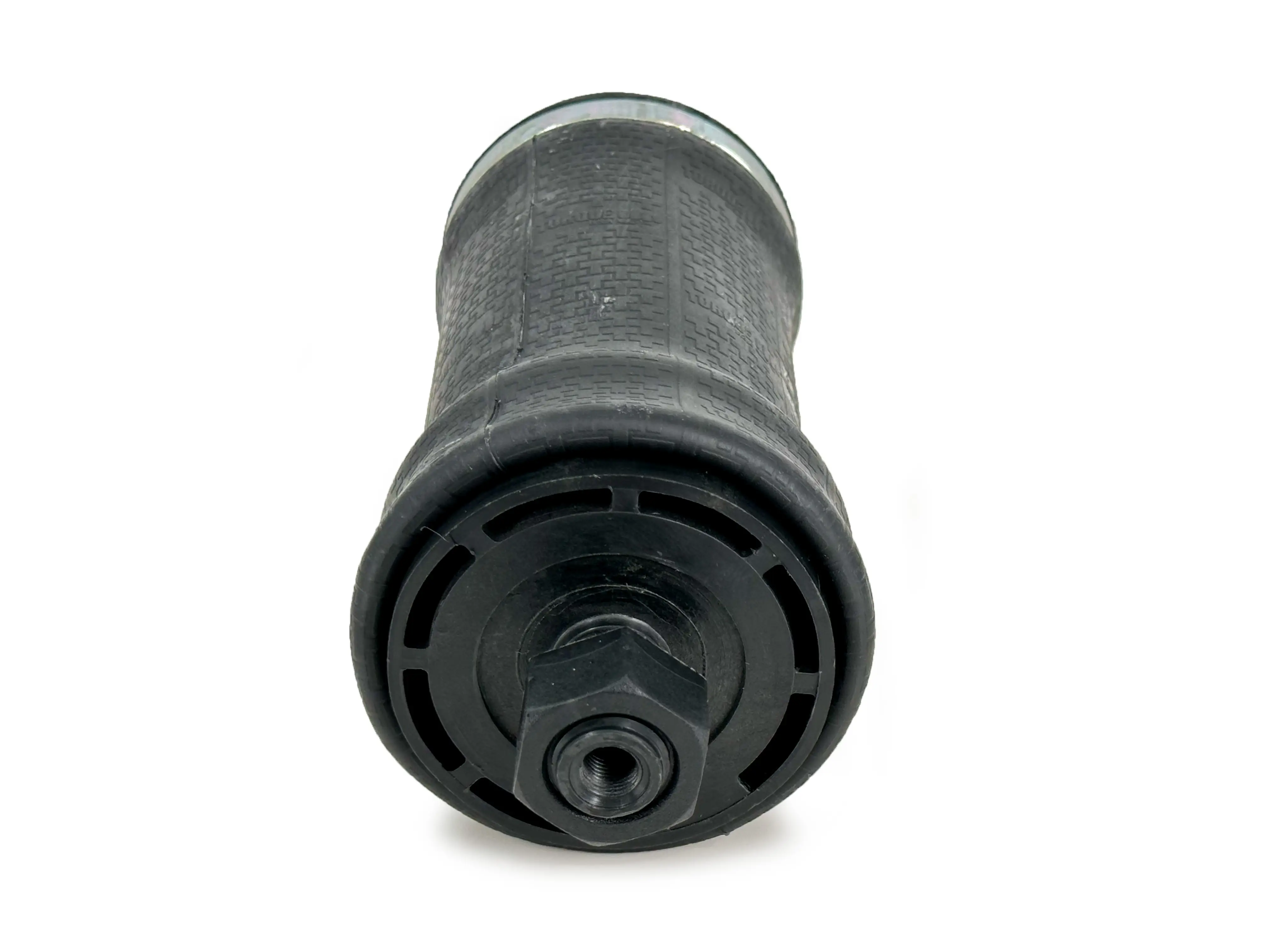

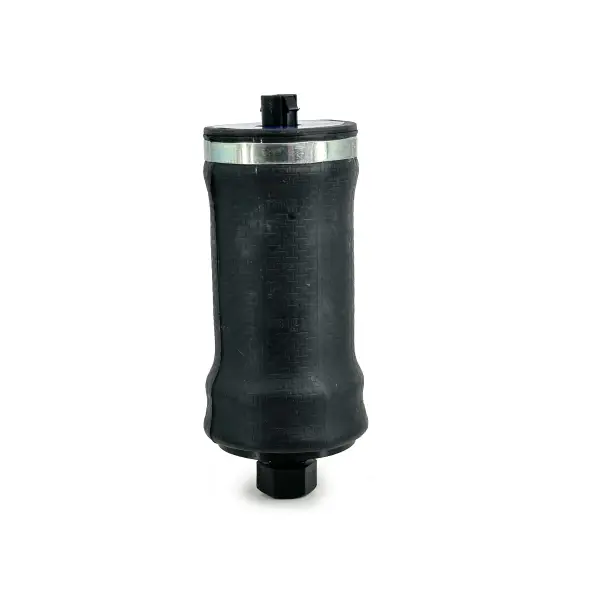

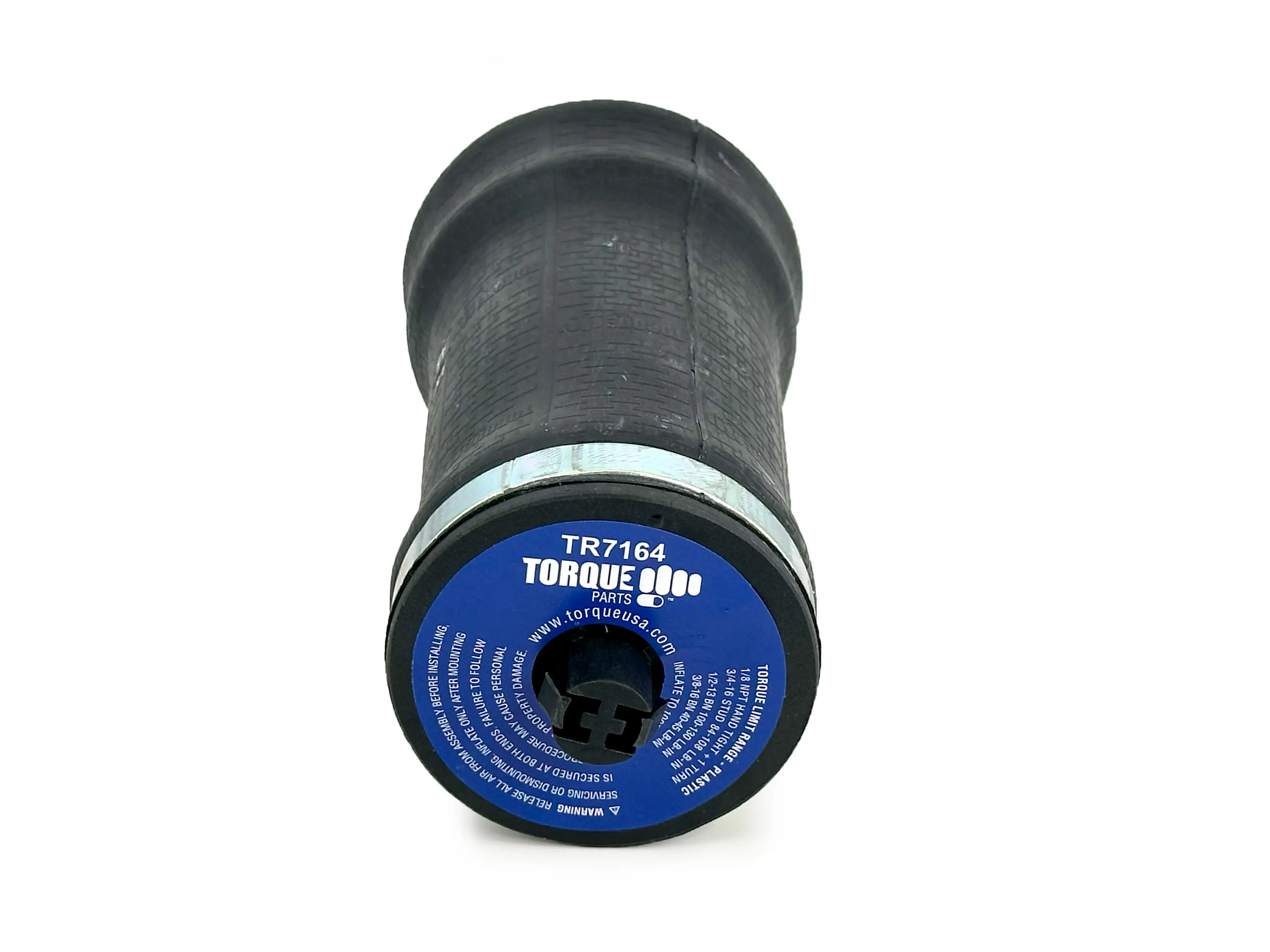

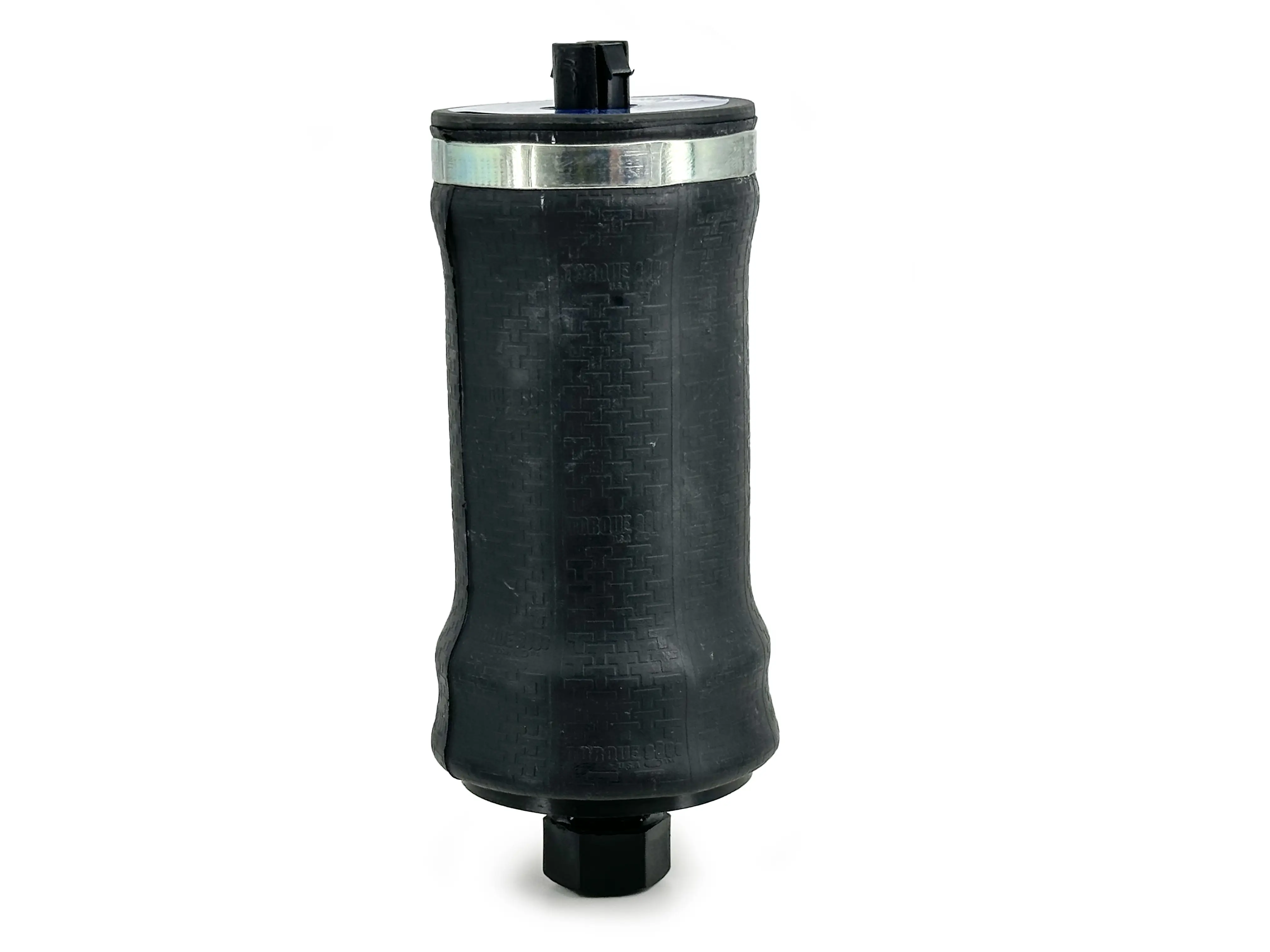

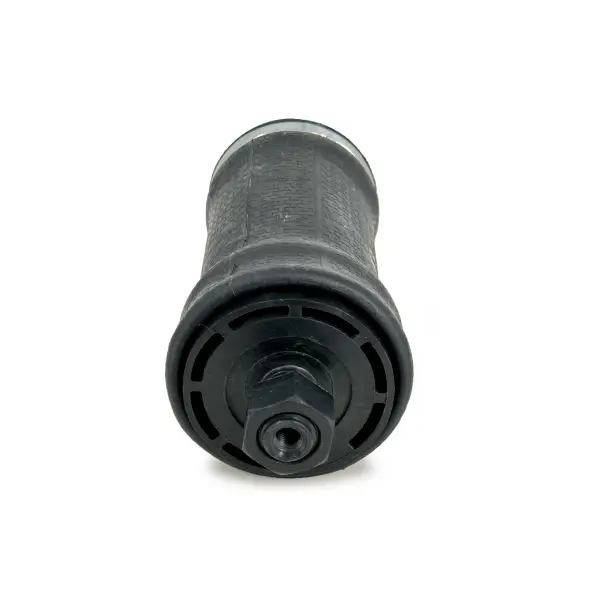

Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164

Description : Cabin Air Spring for Peterbilt Trucks

Part Number : TR7164

Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164
Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164
Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164
Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164
Click to see price
Cabin Air Spring for Peterbilt Trucks
Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann ABSZ70‑7164
Contitech 75314, SC29‑O132
Dynacraft D50002253, D5000‑2253
Firestone 7155, 7164, W023587155, W02‑358‑7155, W027037163, W02‑703‑7163, W027037164, W02‑703‑7164, W027037165, W02‑703‑7165
Goodyear 1S4235, 1S4‑235
Kenworth R816002, R81‑6002
Paccar W027037153, W02‑703‑7153
Peterbilt 2019036, 20‑19036

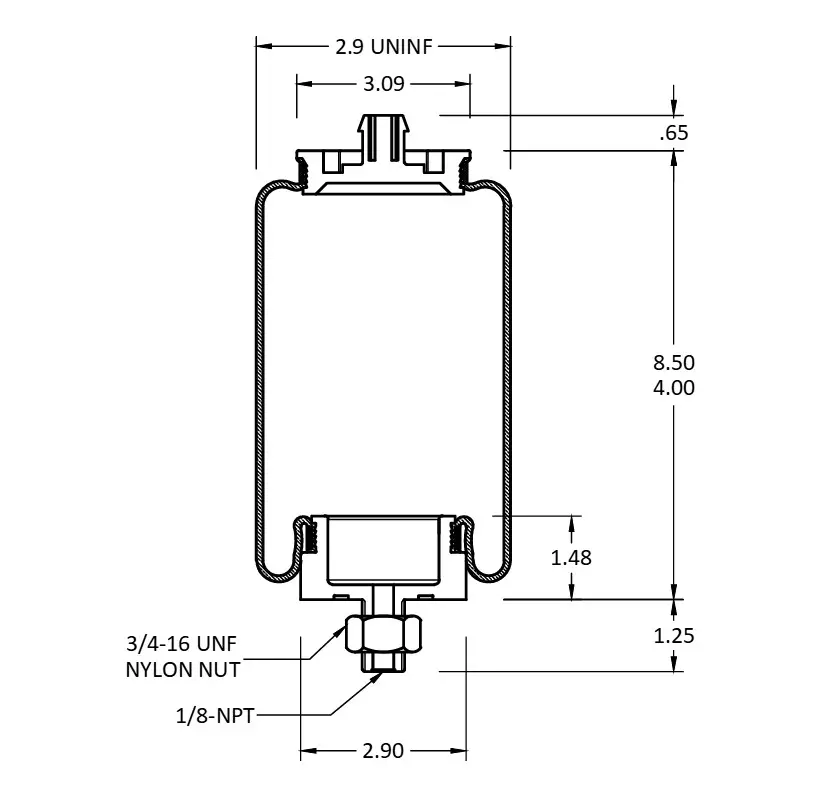

Property Value
 Locating Pin Diameter  3/4"‑16
 Locating Pin Height  0.65"
 Air Inlet  1/8" NPT
 Design Height  8.5‑10.2"
 Piston Diameter  2.90"
 Minimum Jounce Height  6.05"
 Extended Height  8.50"
 Compressed Height  4.00"
 Weight  1.8 lbs
