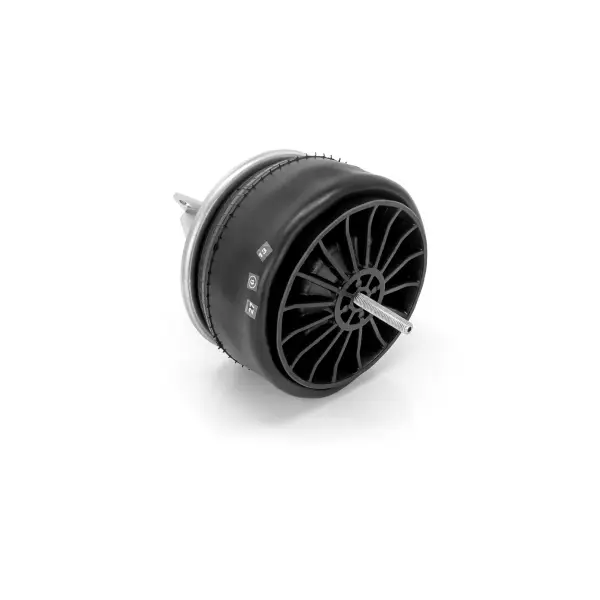

Air Spring for Kenworth Replaces C81-1005, C81-1004, W01-358-9541

Description : Air Spring for Kenworth Trucks

Part Number : TR9541

Air Spring for Kenworth Replaces C81-1005, C81-1004, W01-358-9541

Click to see price

Air Spring for Kenworth Trucks

Airglide 200 May 2003 or later, Airglide 460, Airglide 690

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	AB1DK20G‑9547
Contitech	68357, 9 9‑10 P 861
Firestone	9541, W013589541, W01‑358‑9541, W015449543, W01‑544‑9543, W01‑358‑9547
Kenworth	C811005, C81‑1005, C81‑1004
Goodyear	1R11‑268
Triangle	AS‑8859
Sampa	SP559541‑KP, SP 559541‑KP, SP559541KP

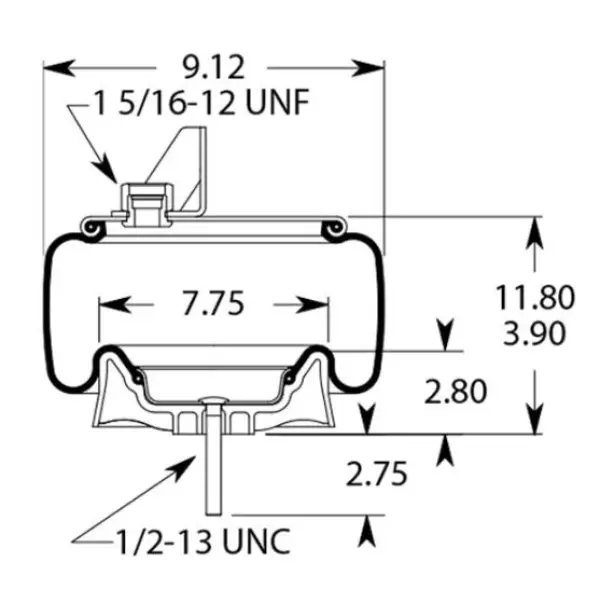

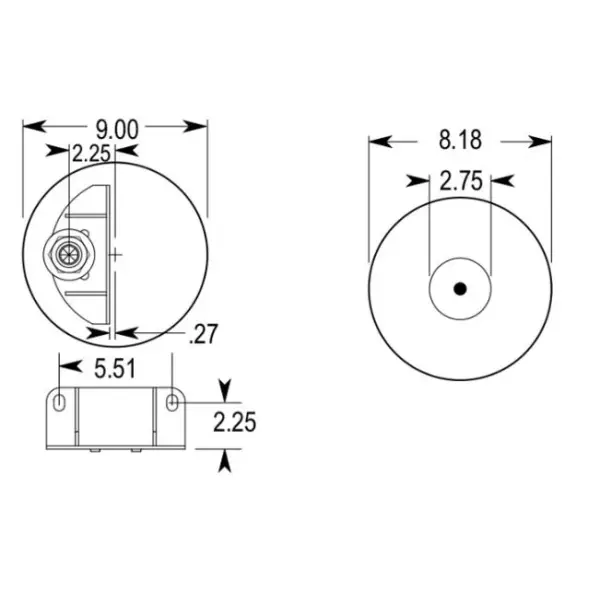

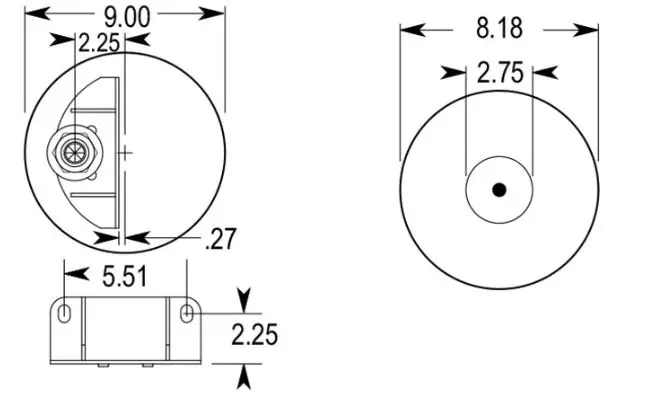

Property	Value
Extended Height	11.80"
Compressed Height	6.25"
Top Plate Width	9.00"
Piston Width	8.18"
Weight	11.1 lbs
