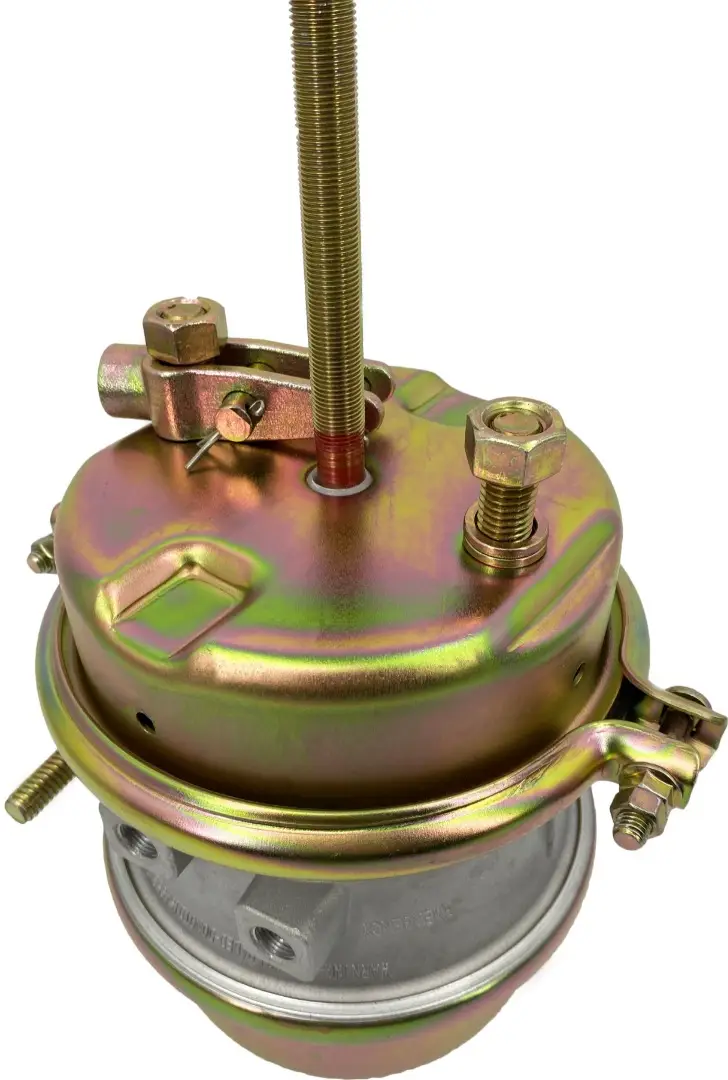

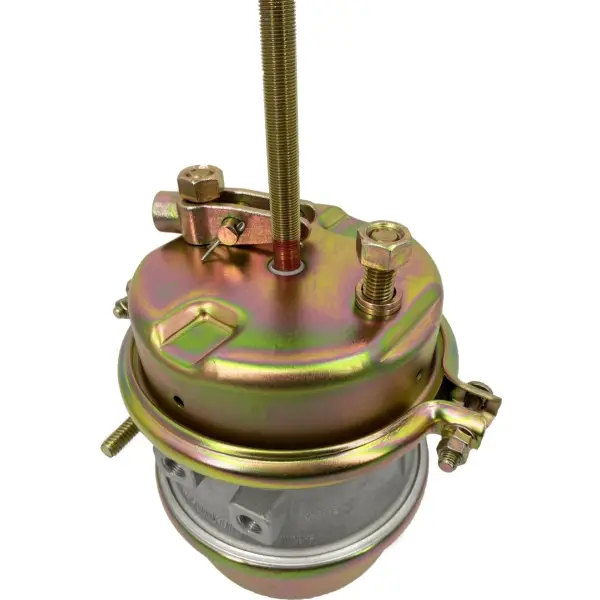

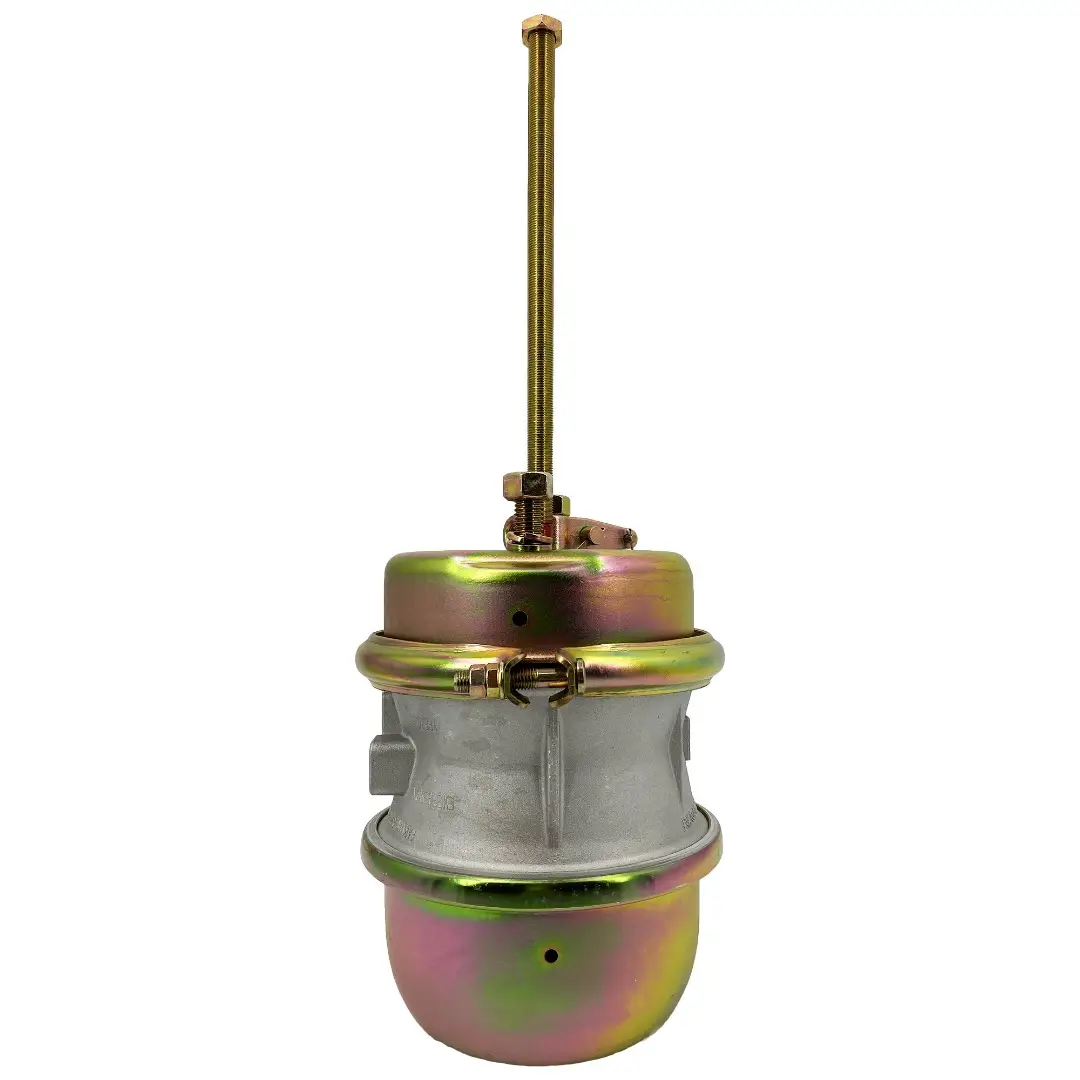

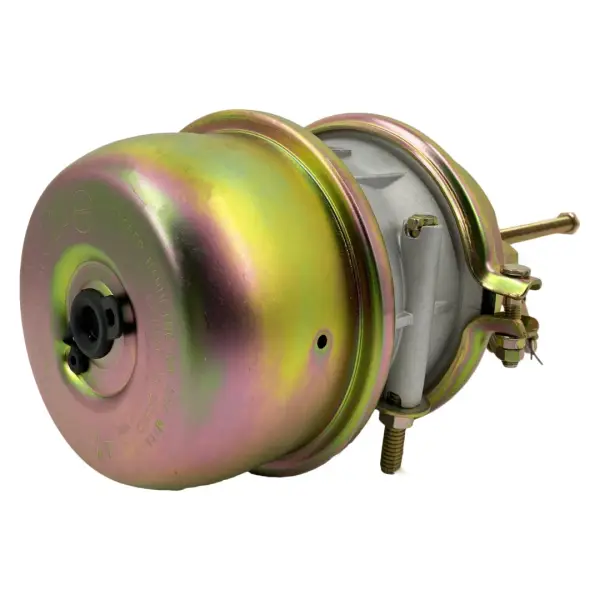

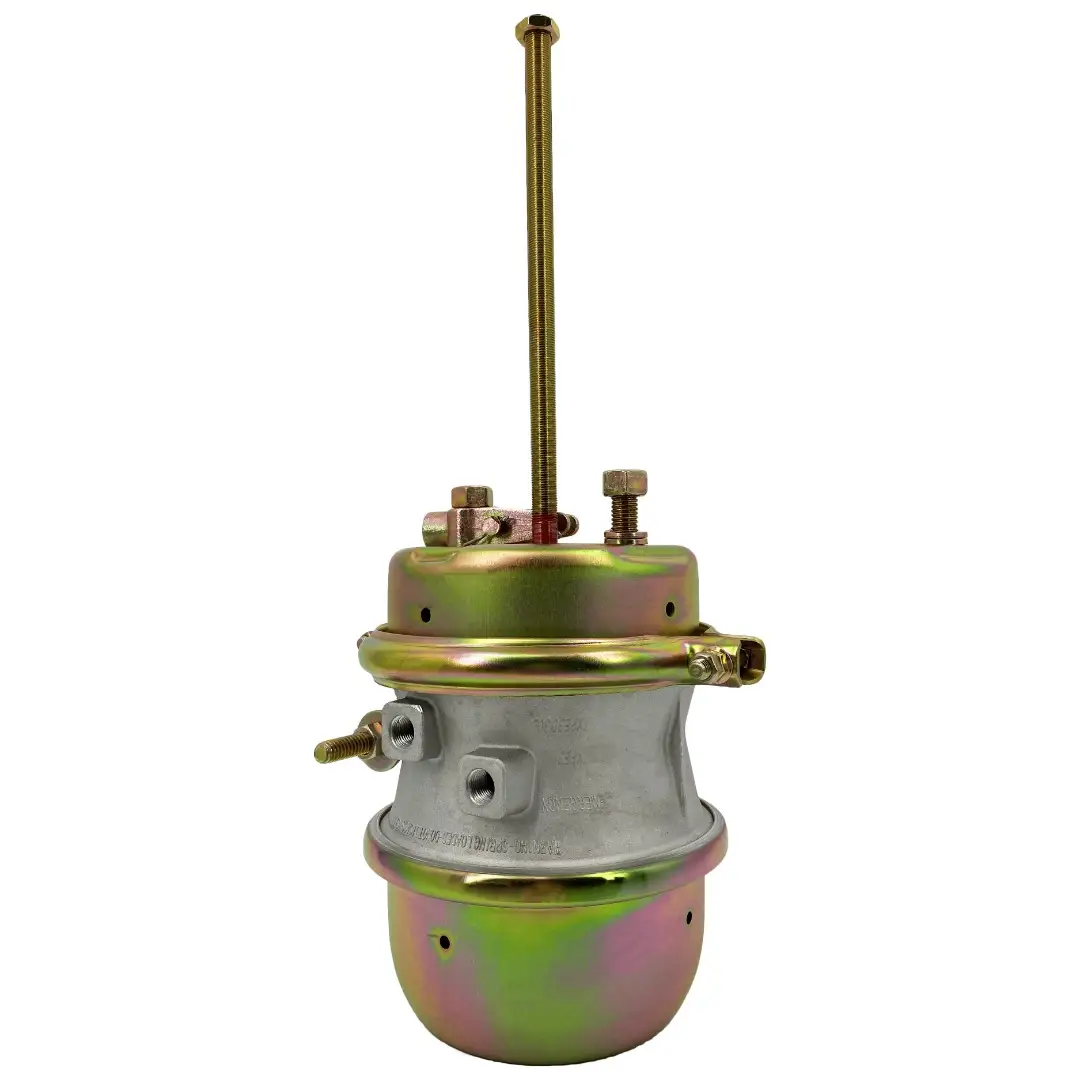

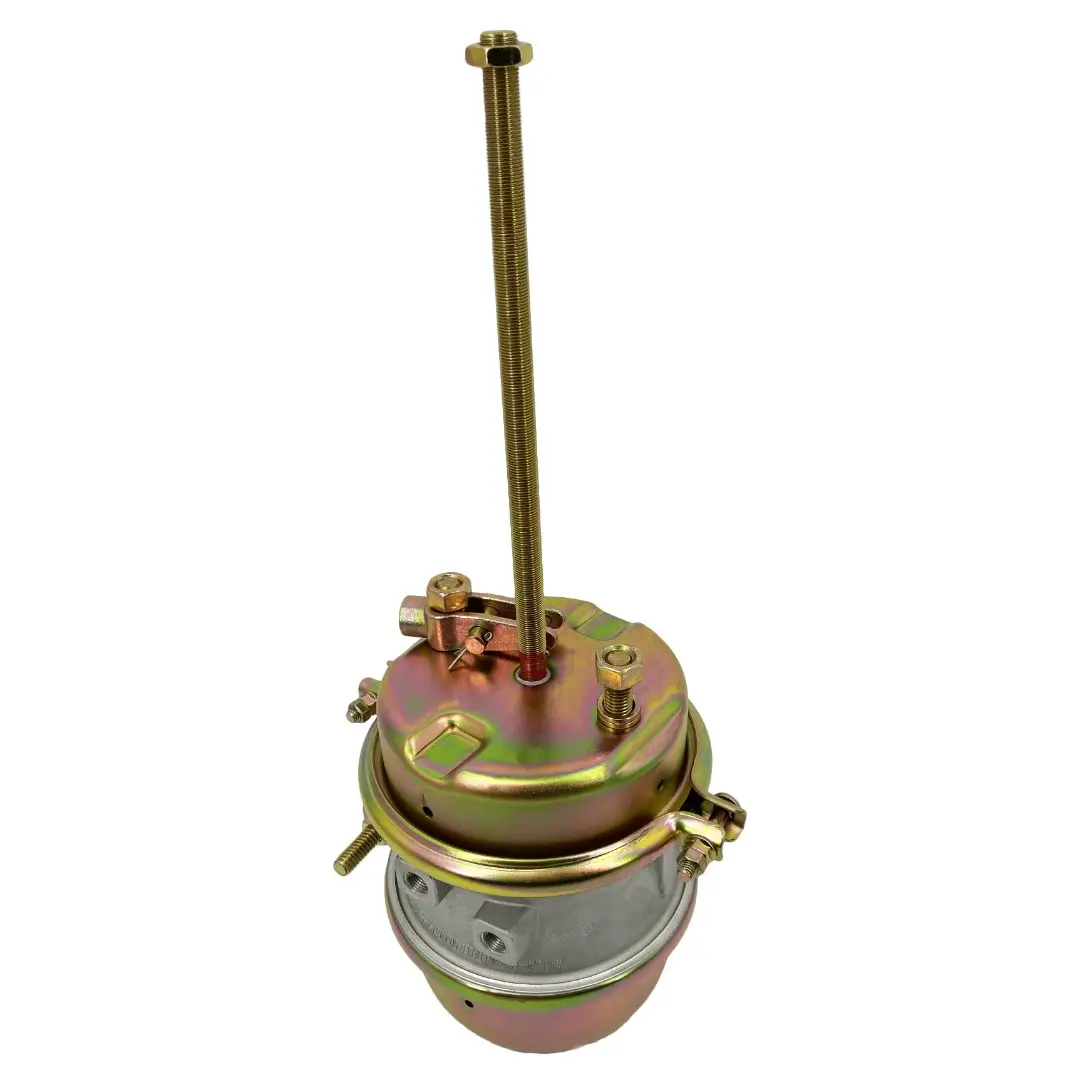

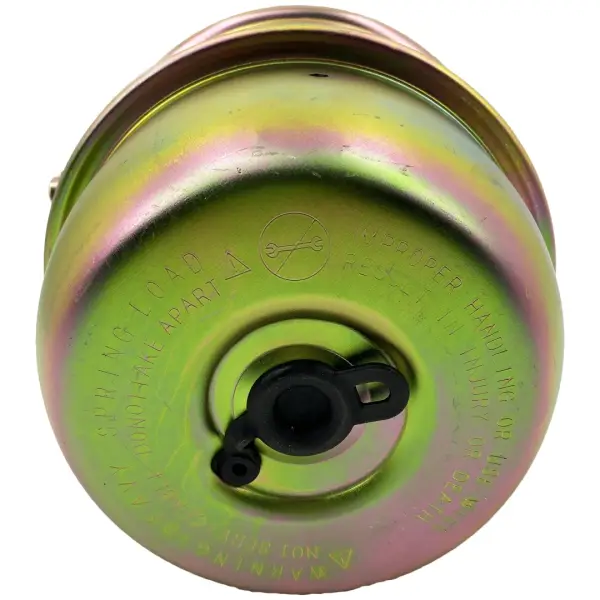

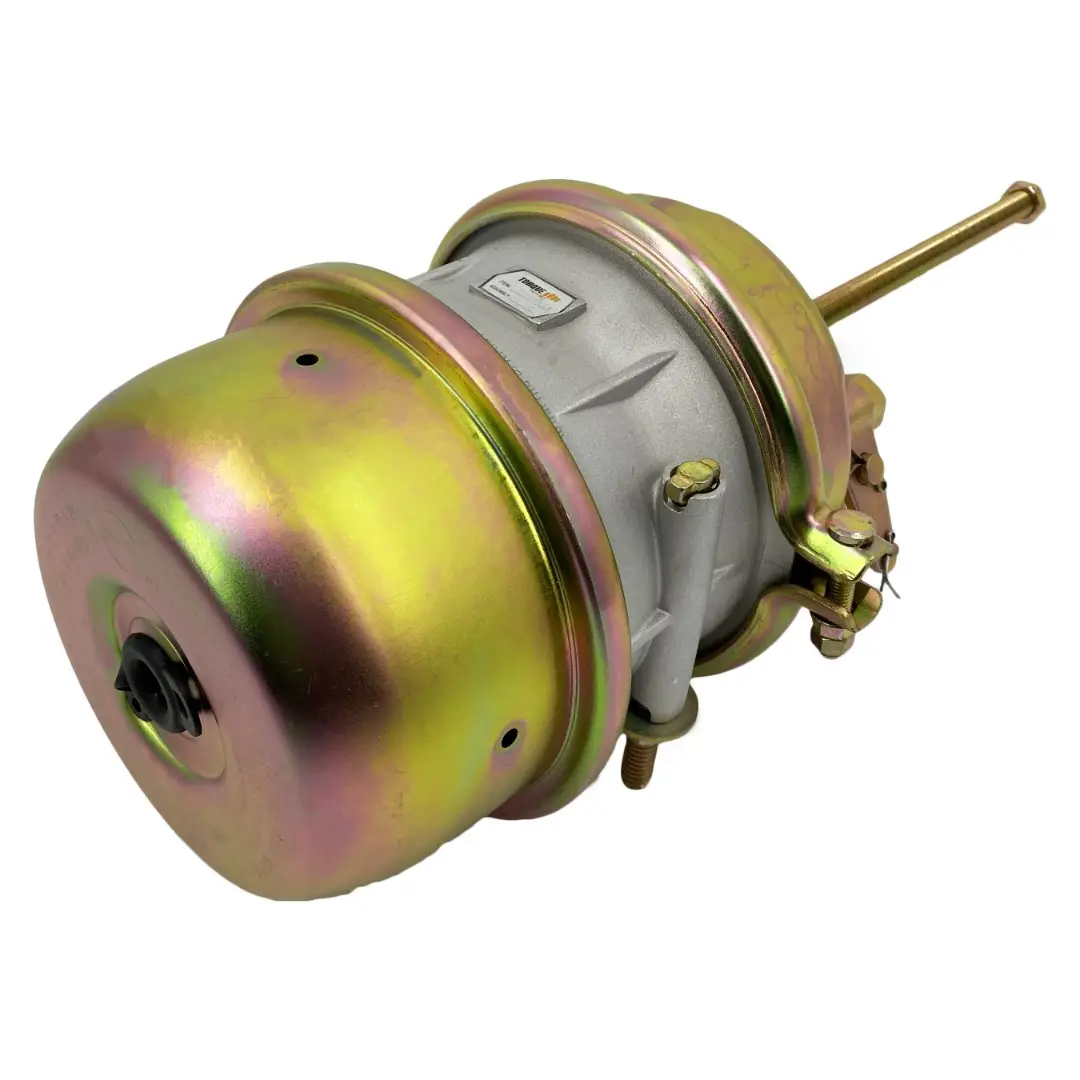

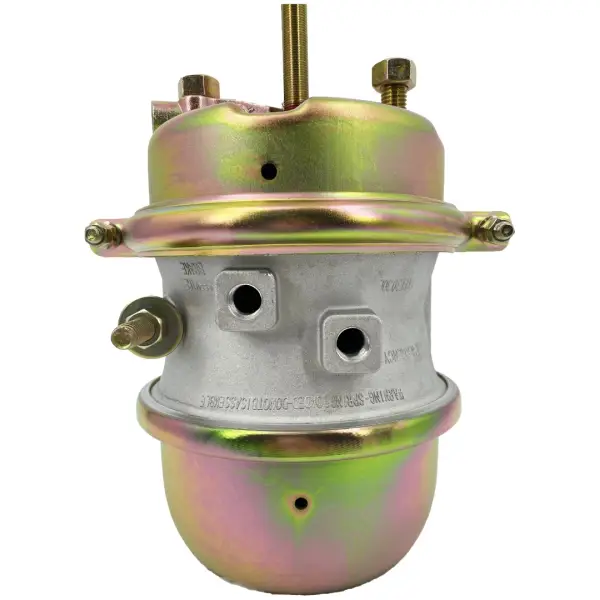

Air Brake Chamber Replaces NT3030ELS80

Description : Long Stroke Air Brake Chamber Type 3030

Part Number : TR3030CLS

Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Air Brake Chamber Replaces NT3030ELS80
Click to see price

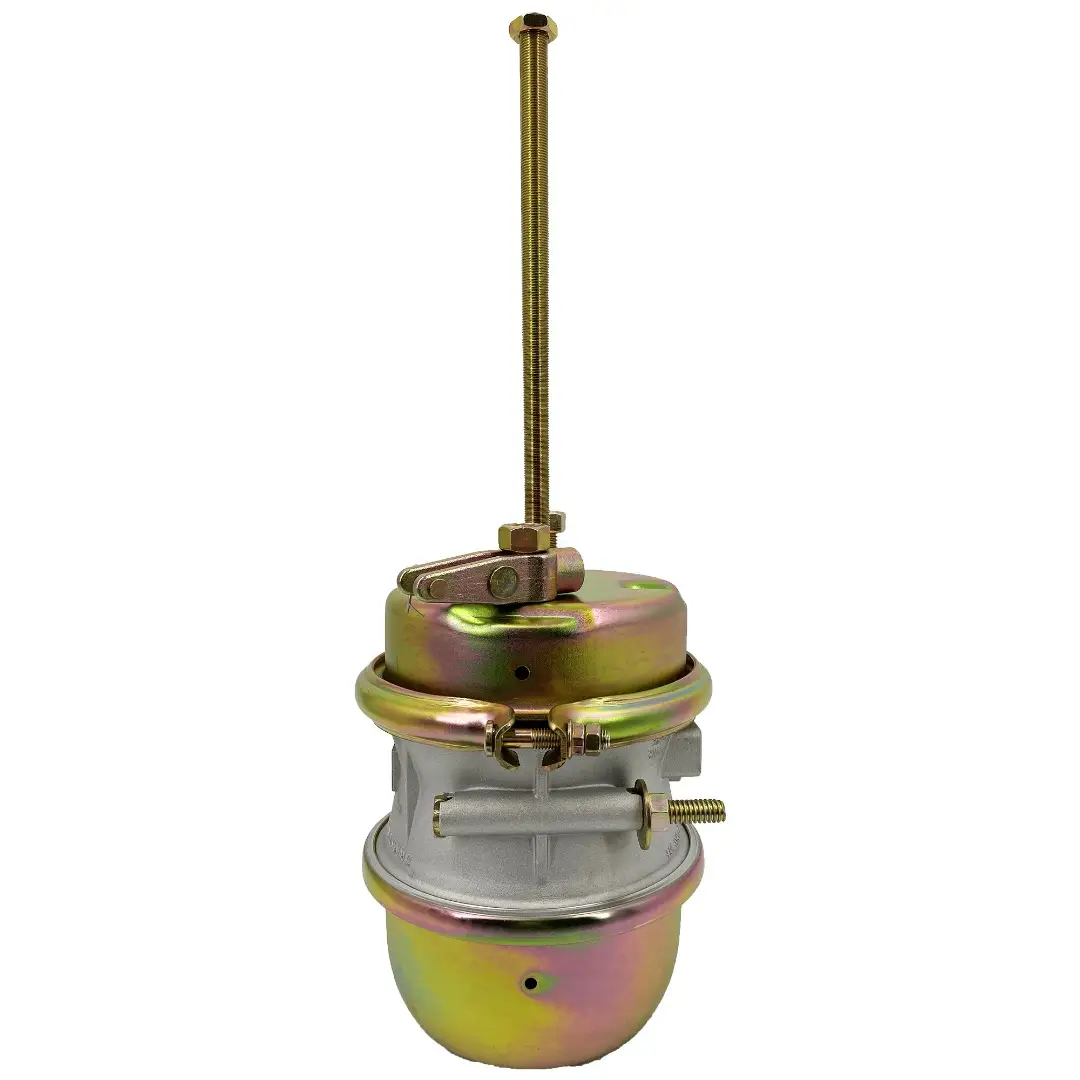

Long Stroke Air Brake Chamber Type 3030

- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications


Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 179.SB3030SL
Bendix NT3030ELS80, NT3030ELS99
Haldex GC3030L, LC3030L, GC3030LR
Midland 3030054, MBI GC3030LR
Watson and Chalin 12963
Property Value
Actuator Type Size 3030
Stroke Type Long
Available Stroke 3", 76mm
Length from mounting bracket to end of Spring Housing 9‑7/8", 251mm
Length of Piggyback 7‑3/8", 187mm
Dimension at rolled Spring Housing flange 8‑5/16", 211mm
Dimension at Service Clampband 10‑3/16"
Pushrod Length from face of Service Housing 13"
Weight  21.8 lbs. , 9.9 kg.
